Treadmill motor and control board problems: signs and how a technician tests them

The drive motor and the control board (sometimes called the motor controller or lower board) are the most expensive parts in most treadmills. They are also the parts people most often replace when they did not need to. This guide explains the signs of trouble, why the real cause is often somewhere else, and how a technician tests before anything is replaced.

Signs the motor may be failing

• The belt surges, hesitates, or slows down under load
• A burning or hot electrical smell
• The treadmill trips the breaker, especially under a heavier user or at higher speeds
• Loud humming, grinding, or a high-pitched whine from under the motor cover
• The treadmill shuts off after running for a while

Signs the control board may be failing

• The console lights up, but the belt does not move
• Speed changes on its own, or does not respond to the buttons
• Error codes about the motor, speed, or communication between the console and the lower board
• The treadmill runs, then stops without warning

Why the real cause is often the belt and deck

Many of these symptoms show up when the motor and board are fine but working against too much friction. As the belt and deck wear, the motor draws more current to keep the belt moving. The board protects itself by shutting down, or it overheats and fails early. If you replace the motor or board without fixing the worn belt and deck, the new part is under the same stress. That is why we always check belt and deck wear as part of any motor or board diagnosis. See our belt slipping guide.

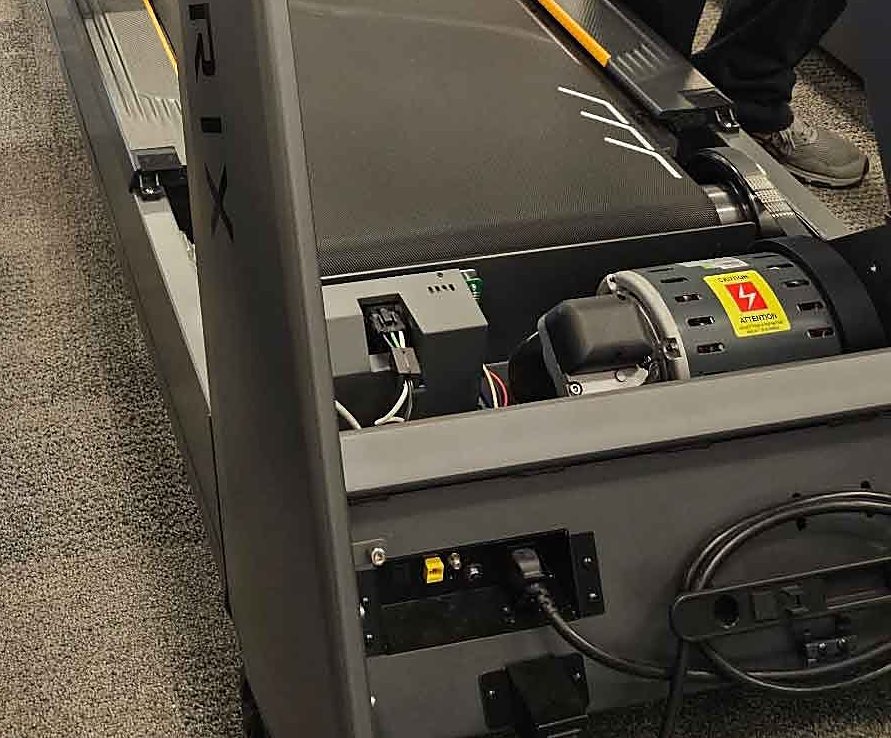

How a technician tests

• Incoming power and the safety circuit: confirm the treadmill is getting proper power and the safety key circuit is closed.
• Amp draw: measure how much current the motor pulls with someone walking on the belt. High draw points to friction or a worn motor.
• Motor checks: inspect brushes and the commutator on motors that have them, and test the motor's output.
• Control board output: confirm the board is sending the motor the right voltage when speed is requested.
• Speed sensor and wiring: a bad sensor or loose cable can look exactly like a failed board.

Testing first is the difference between replacing the right part and replacing parts until the problem goes away.

Repair or replace the treadmill?

Motors and boards are repairable on most commercial treadmills and many home models. Whether it is worth it depends on the machine's age, its overall condition, and the price of the part. We give you the diagnosis and a quote before any repair work, and we will tell you plainly when replacement is the smarter choice.

A note on parts

Motors and control boards are model-specific. After diagnosis we order the correct part for your machine and come back to install it. The return trip is a separate visit, explained in how a repair visit works.

Under 3 years old? Check your manufacturer's warranty before you book a repair. Only the manufacturer can approve a warranty claim, and covered repairs usually have to go through them.
